Combination Air Valve For Sewage Water
Описание на продуктаFeatures:
1. Combination type, triple function(air release, air intake, mirco exhaust air under pressure)
2. Full stainless steel suit for waste water, other material also available upon request.
3. 2.0mm small orifice ensure the rapid air release.
|
Тип |
Rapid Exhaust Valve |
|
Материал |
Stainless Steel |
|
Тяло |
SS/Deplex/Titanium Available |
|
Process |
Welding/Casting |
|
Transport Package |
Plywood cases |
|
Specification |
2’’-6’’ |
|
Production Capacity |
1200 sets/Month |
|
Origin |
Hebei, China |
|
HS Code |
8481804090 |
|
Leading time |
30-45 days |
|
Terms of shipment |
EXW, FOB, CRF/CIF, DAP, DDU |
|
Payment terms |
T/T, L/C, D/P |
информация за продукта
Technical parametersDesign according to: AWWA C512/EN1074-4/CJ-T 217
Flange Standard: EN1092, B16.5
Testing according to: EN1074-1 & 4/EN12266
Working Pressure: PN10/16, CLASS 125/150
Specifications|
Part No. |
Описание |
Materials |
|
1 |
Тяло |
SS316/SS304 |
|
2 |
Float |
SS316/SS304 |
|
3 |
Kinetic bar |
SS316/SS304 |
|
4 |
Top Flange |
CF8M/CF8/UHMW |
|
5 |
Gasket |
NBR/VITON |
|
6 |
Sealing seat |
EPDM/NBR |
|
7 |
UP Vent Float |
UHMW |
|
8 |
UP valve body |
ABS |

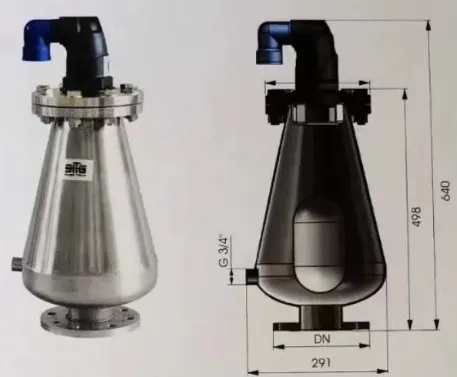

Dimension Chart
|
Valve Size |
2"(DN50) |
3"(DN80) |
4"(DN100) |
6"（DN150） |
|
|
H Overall height |
mm |
640 |
640 |
640 |
640 |
|
W Overall width |
mm |
291 |
291 |
291 |
291 |
|
A Vent orifice area |
mm2 |
12.56 |
12.56 |
12.56 |
12.56 |
|
K Big orifice area |
mm2 |
855 |
855 |
855 |
855 |
|
E Drain diameter |
BSP |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
