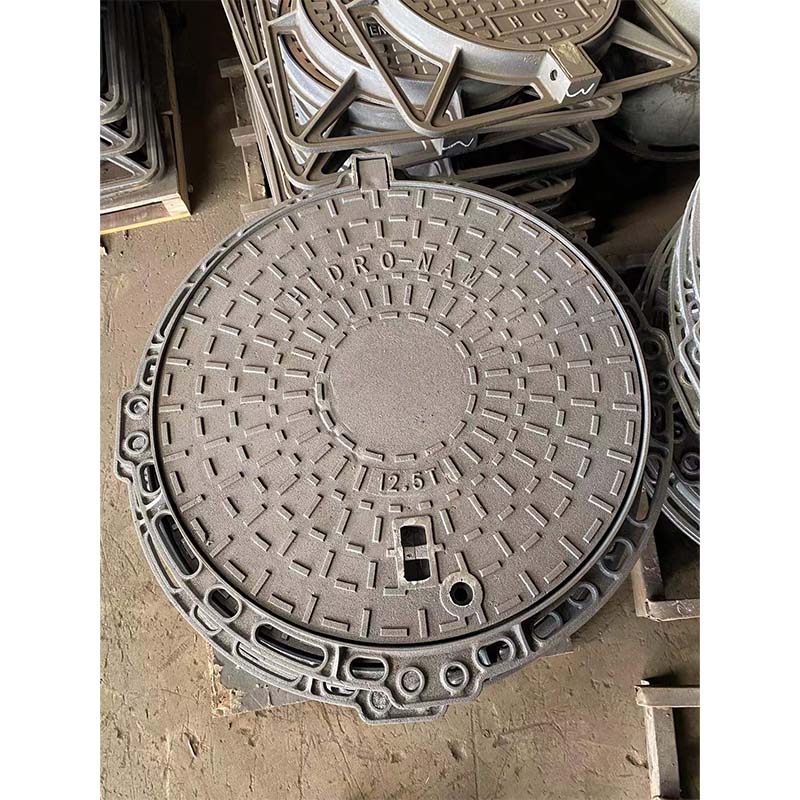

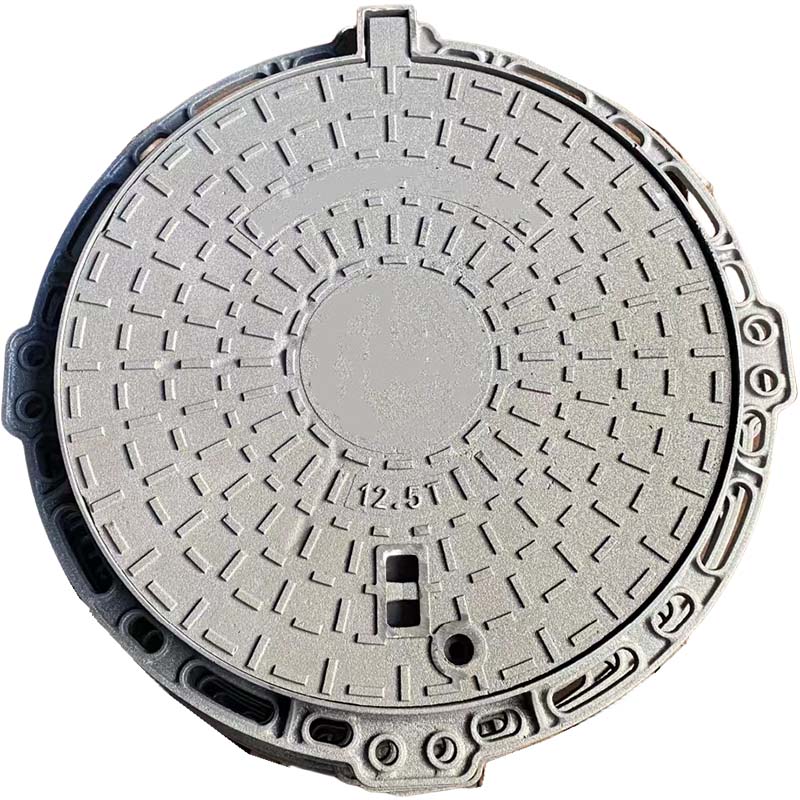

Round Manhole Cover EN124 Standard Class B125 Loading Capacity 12.5T

External Size

Cover Diameter

Clear Opening

Height

Unit Weight

Loading Capacity

20ft container quantity

Ø705mm

Ø580mm

Ø540mm

46mm

25

EN124 B125

1000 unit

Class

Load

resistance KN

Description

A15

15

Pedestrian walkways and cyclist areas,lawns

B125

125

Sidewalks and pedestrian walkways with just occasional traffic stations and parking lots for cars

C250

250

Shoulders and street gulters with a maximum of 0.5m on road surface and 0.2m on sidewalks

D400

400

Roads surface including pedestrian streets with possible traffic during certain periods

E600

600

Private roads under exceptionally heavy traffic roads

F900

900

Prestige areas such as airports
