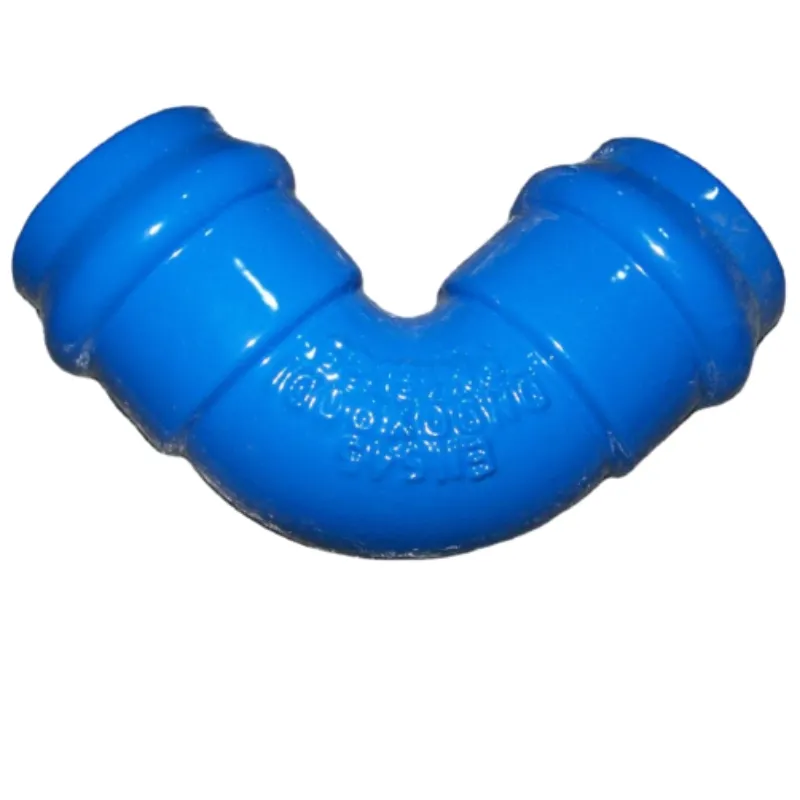

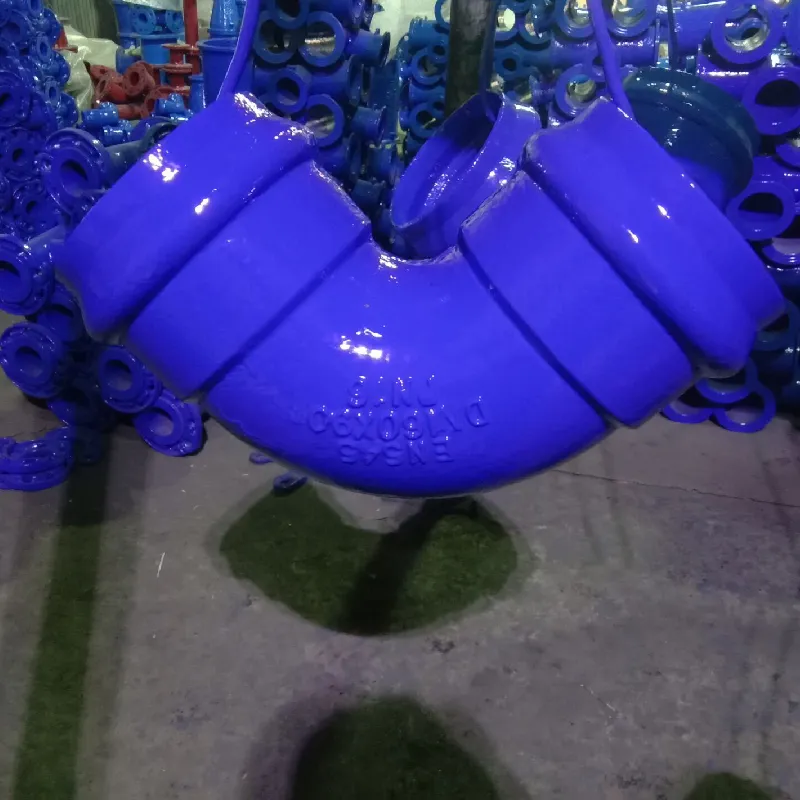

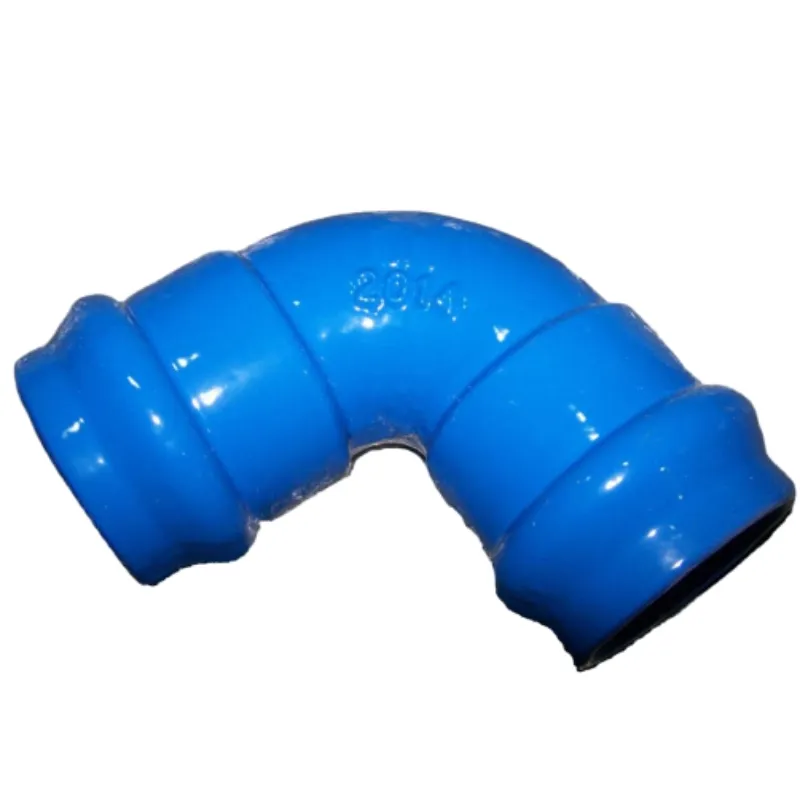

ISO2531/ EN545/ EN598/ EN12842 PVC Double Sockets 90° Bend

Read More About saddle clamp for poly pipe

Material:Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083.

Gasket: Rubber EPDM in accordance with EN681.1

Working pressure:16 bar or 250 PSI.

Standard: according to DIN EN545/598/BS4772/ISO2531 standards

Application: PVC fittings for drinking water and neutral liquids up to +70°C

CONTACT NOW PDF DOWNLOAD

Details

Tags

Product Specifications

OD	L	R	Mass (kg)
63	65	57	3.08
75	70	62	3.99
90	75	67	5.34
110	85	77	7.19
125	110	102	9.44
140	110	102	11.26
160	130	122	14.80
200	160	152	21.58
225	160	150	25.94
250	185	175	32.74
315	215	205	49.83
400	275	265	84.24

Packing & Deliverys

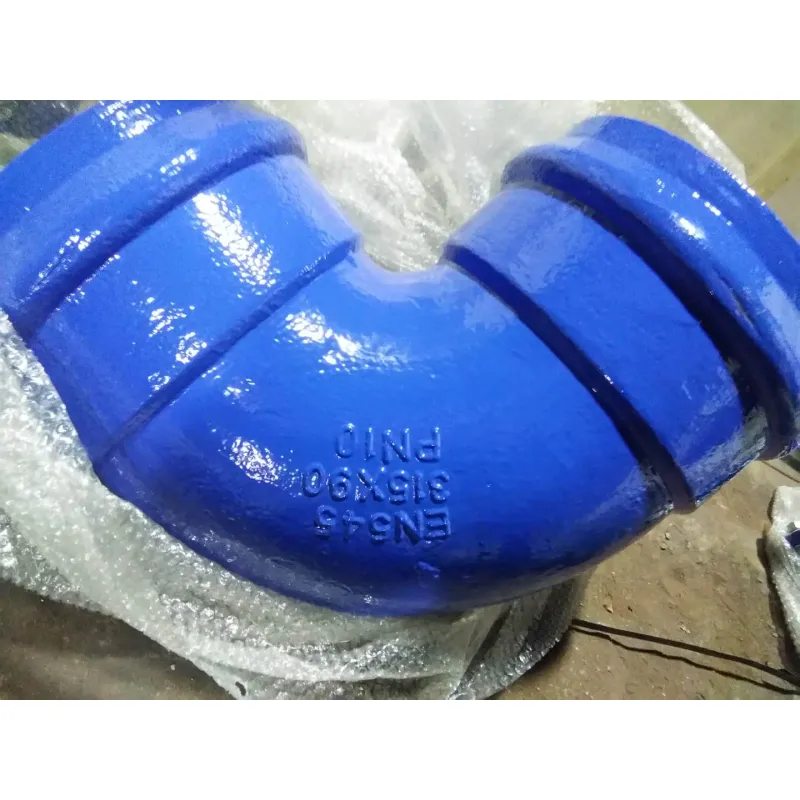

Packing:Bubble film packing to protect EPOXY coating, then use standard wooden case or pallet suitable for long sea transportation.
Delivery time: For stock products, we will ship within 7 days after receiving the payment. If new order, it will takes around 30-45 days after receiving payment.

Company Introduction

HEBEI YONGQIAN TRADING CO.,LTD is focused on high quality, long lasting and low maintenance required ductile iron products for water supply networks. Contact our sales team to get information about our products today! You are welcome to be our distributors in your country.
