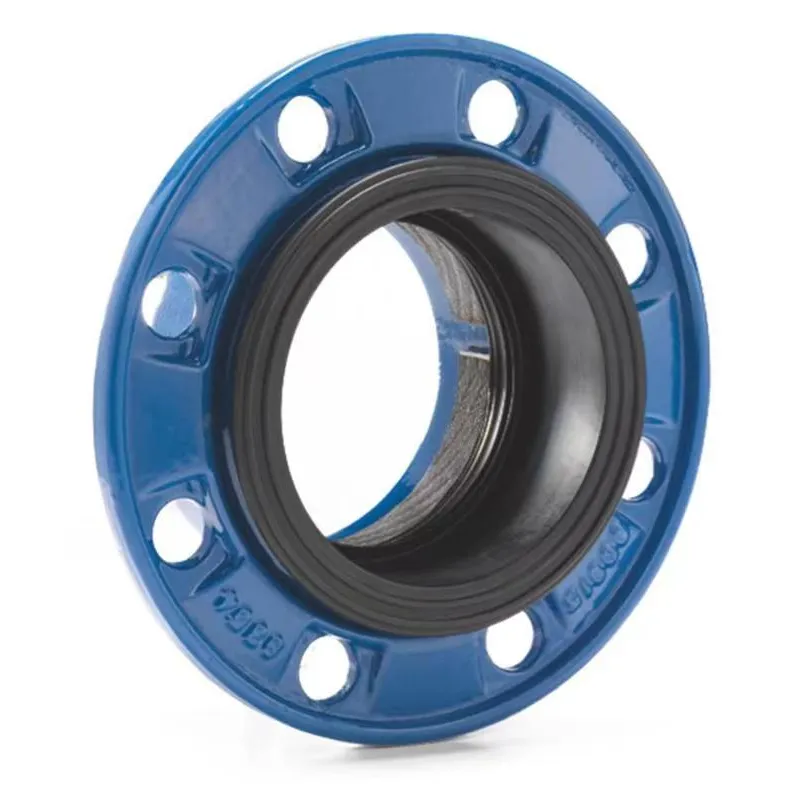

Ductile Cast Iron Quick Flange Adaptor For PVC/PE Pipe
Product Description
Adaptor: ductile iron
Rubber gasket: EPDM
Grip Ring: Copper alloy
Product Specifications
Quick Flange Adaptor For PVC pipe
No. | DN(mm) | Casting Weight(kg) | Rubber ring weight (kg) | Total weight (kg) |
1 | DN63*50/60/65 | 1.78 | 0.14 | 1.92 |
2 | DN90*80 | 1.92 | 0.16 | 2.08 |
3 | DN110*100 | 2.15 | 0.23 | 2.38 |
4 | DN125*125 | 2.8 | 0.3 | 3.10 |
5 | DN140*125 | 3.85 | 0.37 | 4.22 |
6 | DN160*150 | 3.87 | 0.405 | 4.28 |
7 | DN160*150 | 4.80 | 0.6 | 5.40 |
8 | DN200*200 | 7.30 | 0.95 | 8.25 |
9 | DN225*200 | 7.65 | 0.95 | 7.60 |
10 | DN250*250 | 8.80 | 1.2 | 10.00 |
11 | DN315*300 | 11.40 | 1.75 | 13.15 |
12 | DN400*400 | 19.60 | 2.6 | 22.2 |
Quick Flange Adaptor For PE Pipe
No. | DN(mm) | Casting Weight(kg) | Rubber ring weight (kg) | Total weight (kg) |
1 | DN40*50 | 1.65 | 0.1 | 1.71 |
2 | DN63*50/60/65 | 1.78 | 0.14 | 1.98 |
3 | DN75*60/65 | 1.92 | 0.16 | 2.26 |
4 | DN90*80 | 2.15 | 0.23 | 2.52 |
5 | DN110*100 | 2.8 | 0.31 | 3.25 |
6 | DN125*125 | 3.85 | 0.37 | 4.42 |
7 | DN140*125 | 3.87 | 0.41 | 4.48 |
8 | DN160*150 | 4.8 | 0.6 | 5.69 |
9 | DN200*200 | 7.3 | 0.95 | 8.6 |
Company ProfileHebei Yongqian Trading Co.,Ltd, which is in pipe fitting industry and provide high quality quick flange adaptor for PVC/PE pipe, dismantling joint, coupling, saddle clamp, repair clamp etc. Which is widely used in the field of pipe fittings and pipeline infrastructure. We are here for your next pipeline infrastructure project.
Product Packaging
