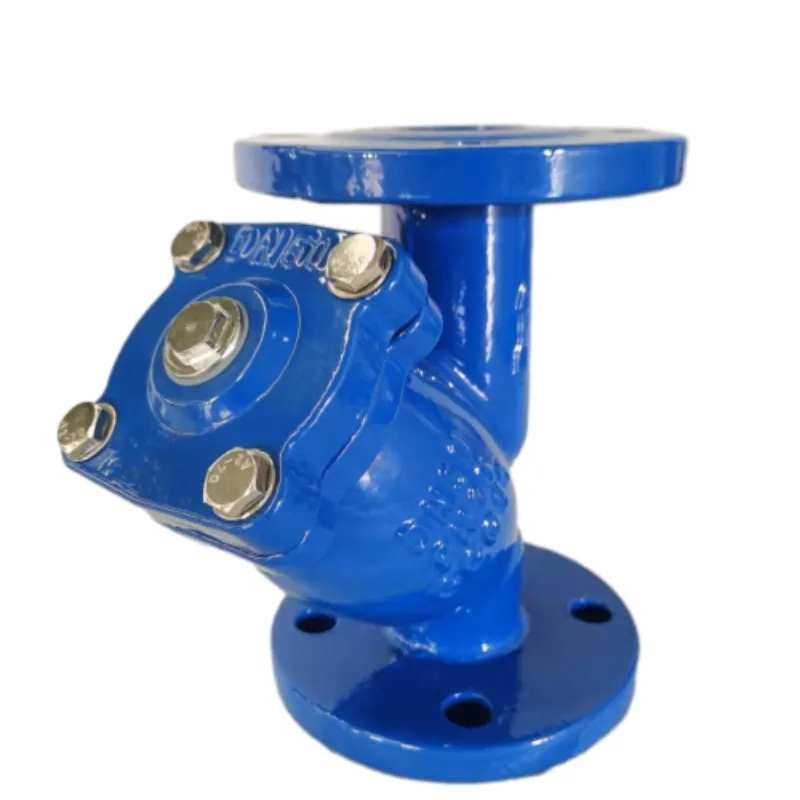

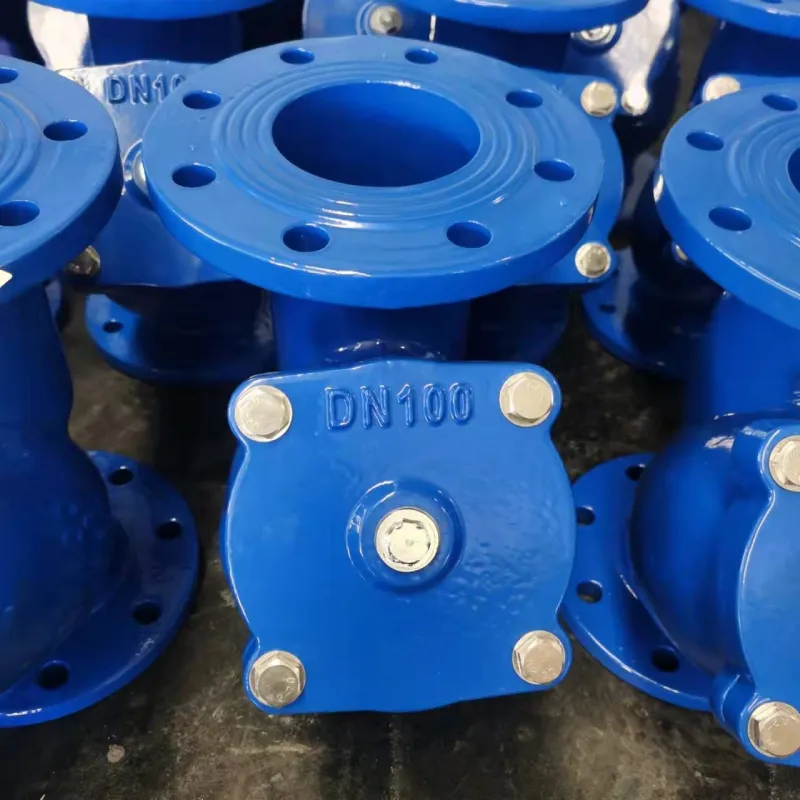

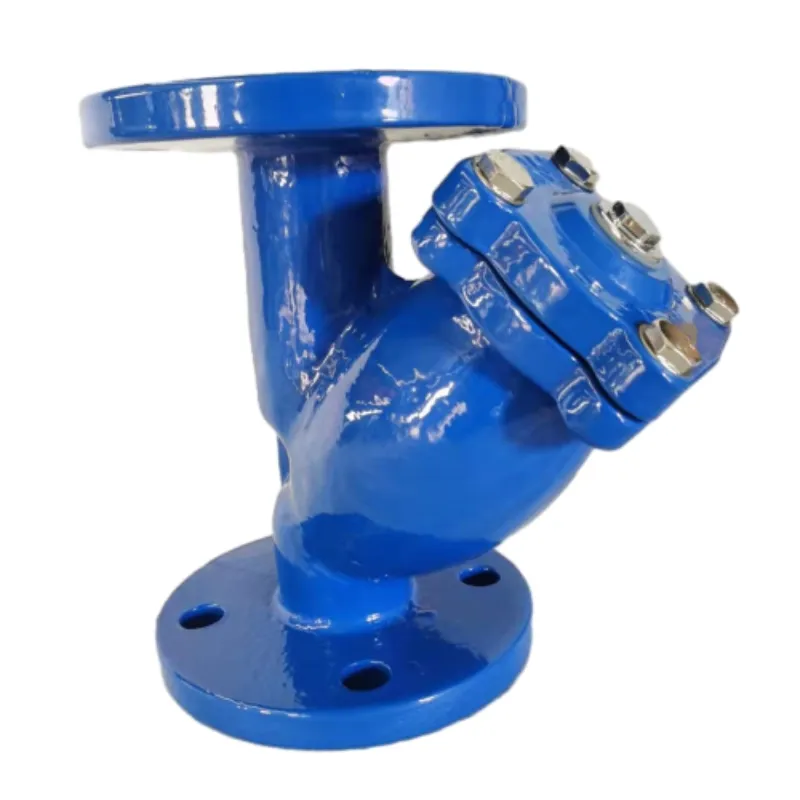

DIN3202 F1 Y Strainer

DIN3202 F1 Flanged Y type Strainer

Standard:

Design Standard: DIN3202 F1

Flange drilling standard: EN1092-2 PN10,PN16

Face to face standard: EN558-1

Hydraulic test standard: EN1074-1 and 2/EN12266

Seat: 1.1*PN(in bar), Body：1.5*PN(in bar)

CONTACT NOW PDF DOWNLOAD

Details

Tags

Technical Parameters

Nominal diameter(mm): 50-600
Nominal pressure(Mpa): 1.0/1.6
Testing pressure：Shell(Mpa)1.5/2.4
Seal(Mpa)1.1/1.76
Suitable temperature:-40°C～200°C
Suitable medium: Drinking water, sewage, seawater,irrigation or other neutral liquid

Main Raw material

Body	Ductile iron
Screen	SS304
Bonnet	Ductile iron
Sealing	EPDM/Graphite
Bolt/Washer	SS304
Drain outlet	Carbon Steel

Dimension：

Size	L	D	C		D1	n-d		b	f
DN50	230	165	125		99	4-19		19	3
DN65	290	185	145		119	4-19		19	3
DN80	310	200	160		133	4-19	8-19	19	3
DN100	350	220	180		154	8-19		19	3
DN125	400	250	210		184	8-19		19	3
DN150	480	285	240		210	8-23		19	3
DN200	600	340	295		265	8-23	12-23	20	3
DN250	730	405	350	355	319	12-23	12-28	22	3
DN300	850	460	400	410	370	12-23	12-28	24.5	4
DN350	980	520	460	470	429	16-23	16-28	26.5	4
DN400	1100	580	515	525	480	16-28	16-32	28	4
DN500	1250	715	620	650	585	20-28	20-34	31.5	5
DN600	1450	840	725	770	690	20-31	20-37	36	5
